- Código RS:
- 405-8621
- Nº ref. fabric.:
- 2040000051
- Fabricante:
- Mascot
Temporalmente fuera de stock. El producto se entregará cuando vuelva a estar disponible.
Añadido
Precio Unidad
86,69 €
(exc. IVA)
104,89 €
(inc.IVA)
Unidades | Por unidad |
1 + | 86,69 € |
Producto Alternativo
Este producto actualmente no se encuentra disponible. Le sugerimos la siguiente alternativa.
- Código RS:
- 405-8621
- Nº ref. fabric.:
- 2040000051
- Fabricante:
- Mascot
Documentación Técnica
Legislación y Conformidad
- COO (País de Origen):
- NO
Datos del Producto

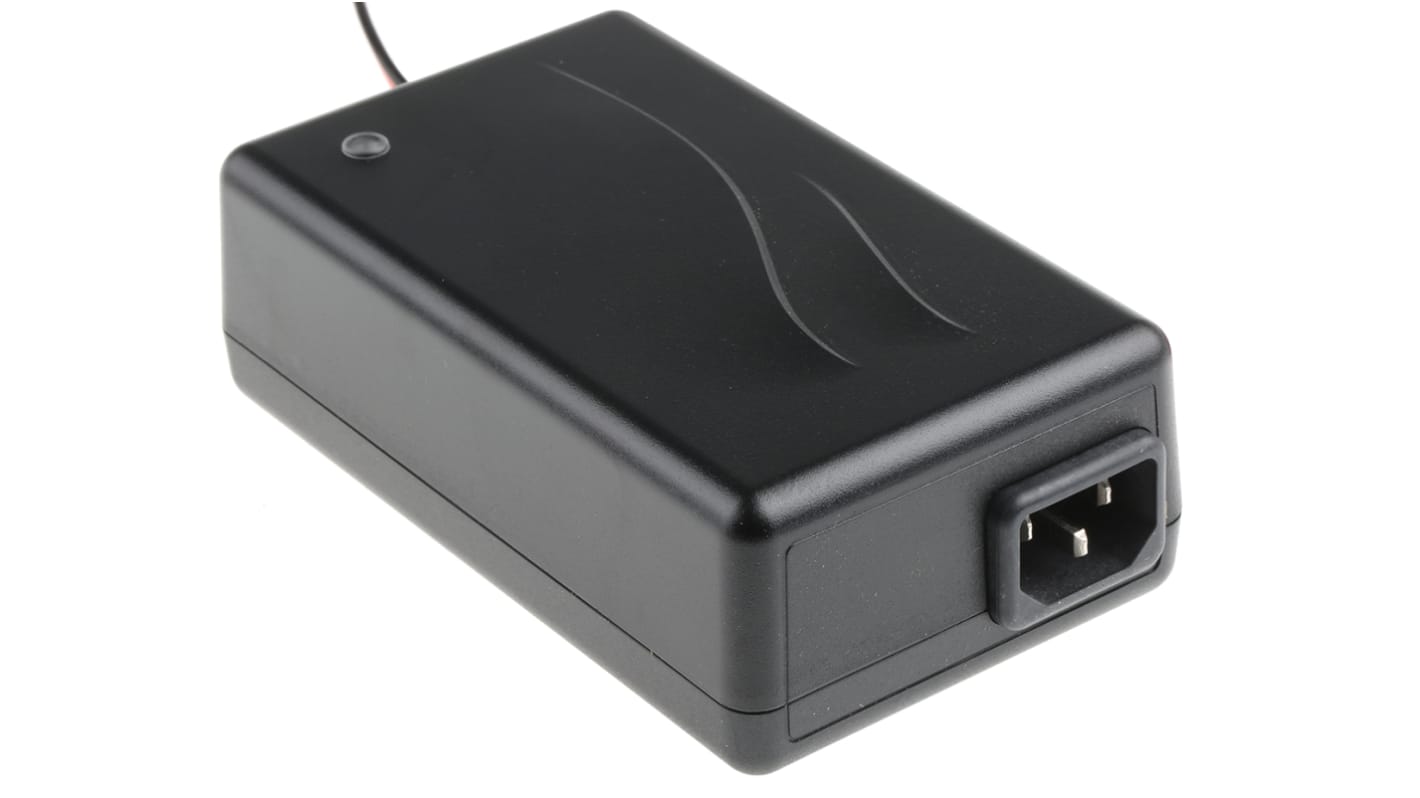

Mascot Battery Charger
The Mascot 2040 series lead-acid 12V battery charger has output charging current rating of 4A. It has a 3-colour LED charge status indicator and crocodile clip output. This 3-stage battery charge is waterproof and shockproof. It requires input supply voltage between 90VAC to 264VAC. This charger is ideal for medical applications. The 3-stage system permits the charger to be left connected indefinitely
Features and Benefits
Protection against reverse voltage and short circuit
Temperature ranges between -10℃ and 40℃
Mounting brackets available separately
AC plug to IEC 320/2-pin C8
Temperature ranges between -10℃ and 40℃
Mounting brackets available separately
AC plug to IEC 320/2-pin C8
Certifications
EN 60950
EN 60335-2-29
UL2601-1
IP67 rated
EN 60335-2-29
UL2601-1
IP67 rated
Especificaciones
Atributo | Valor |
---|---|
Químicas Admitidas por el Cargador | Plomo ácido |
Tensión de Salida | 12V |
Corriente de Carga | 4A |
Número de Baterías Cargadas | 1 |
Tensión de Entrada | 90 → 264V ac |
Baterías Incluidas | No |
Número de Fases de Carga | 3 |
Dimensiones | 130 x 80 x 44mm |
Peso | 350g |
- Código RS:
- 405-8621
- Nº ref. fabric.:
- 2040000051
- Fabricante:
- Mascot
