Nº ref. fabric.

Extractor de soldadura RS PRO, long. 154mm, Standard, Aluminio, , Antiestático, boquilla de PTFE


8 Entrega en 24 horas
192 Disponible para entrega en 24/48 horas
Add to Basket

Precio Unidad

25,58 €

(exc. IVA)

30,95 €

(inc.IVA)

unidades

Añadido

Código RS:
479-5904
Fabricante:
RS PRO

Estado RoHS: No aplica

COO (País de Origen):
GB
unidadesPor unidad
1 +25,58 €

Herramientas de Desoldadura por Succión


Las boquillas se enroscan excepto en el modelo en miniatura donde encajan a presión. Se dispone de boquillas de repuesto para cada tipo. Las arandelas para sellado de repuesto, fabricadas en neopreno y en modelos estándar y miniatura, son comunes para los modelos normales y antiestáticos.

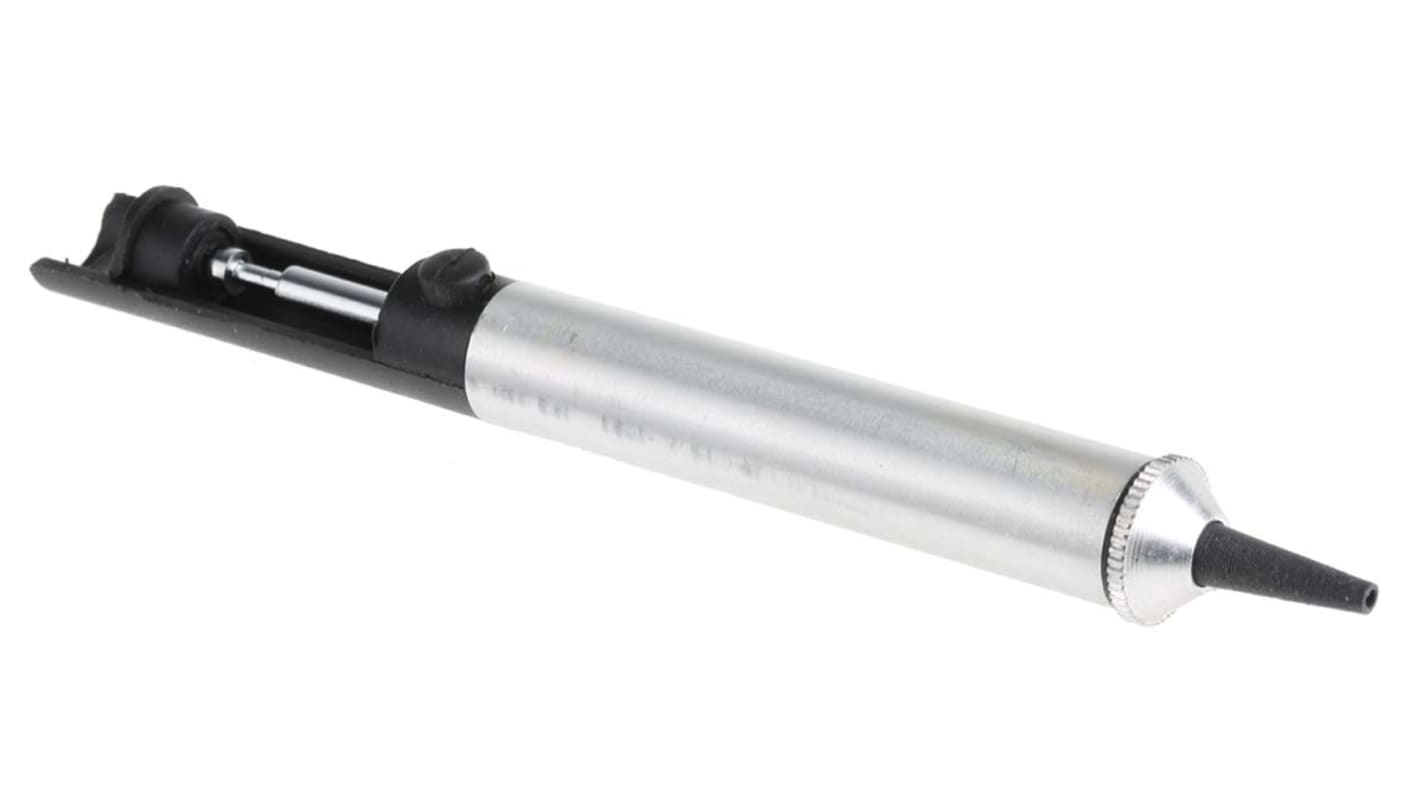

RS PRO Compact Mini Anti-Static Solder Sucker De-soldering Gun.


The RS Pro Solder Sucker de-soldering gun is an anti-static model, hand operated tool, a compact smaller version of the standard model. The solder sucker is a professional and quality tool used to cleanly remove solder plus providing joint dis-assembly. To assist you in removing solder the solder sucker picks up the debris by sucking it up via a spring-loaded piston, released by a push button and re-primed by a plunger. Extraction springs are located outside the vacuum chamber and this helps to prevent the solder sticking and prolongs the life of the solder sucker. This RS PRO model has a PTFE nozzle which is carbon impregnated and the main body of the de-soldering gun is made from polished aluminium. The polished aluminium body provides conduction from the desoldering point though to yourself.


Features and Benefits.


• Solder sucker, desoldering gun.
• Compact mini model.
• Smaller than a standard model.
• Anti-Static model.
• Hand operated.
• Provides efficient solder removal and joint dis-assembly.
• Fast sucking action via the spring loaded piston.
• Extraction springs are outside of the vacuum chamber.
• Prevents solder sticking.
• PTFE Nozzle (polytetrafluoroethylene), carbon impregnated.
• Main body made from polished aluminium (providing conduction from the tip).
• Spare nozzle see stock number 4795932.
• Spare washer see stock number 4795774.


What is PTFE?


• Insulates.
• Resistant to wear.
• Less friction.
• Used with high temperatures.
• Chemically resistant.


PTFE – Polytetrafluoroethylene. A very stable material used in various industries and applications. A stable and hard wearing material.


How to use a Solder Sucker De-soldering Gun Pump.


• Heat up the solder to be removed with your soldering iron.
• Press the plunger of the solder sucker.
• Place to desoldering pump against the solder to be removed.
• The piston will then suck up the solder to be removed.
• Repeat all of the above as many times as required.
• When finished remove and dispose of the waste solder from the pump.


Solder Sucker De-soldering Gun Dimensions.


• Length 154 mm.
• Barrel diameter 14 mm.
• Nozzle length 15.5 mm.
• Tip outside dimeter 3 mm.
• Tip inside diameter 1.5 mm.
• Weight 35 g.


Safety Warning.


• This Solder sucker desoldering gun should not be used on LIVE electrical circuits, it provides no protection from electric shock.
• Always protects your eyes when using the de-soldering gun with industry approved eye protection to standards CE, OHSA and ANSI.


Why RS PRO?

RS PRO aims to be your go-to brand for reliability and value for money. We source high-quality parts at great prices and test everything with our in-house experts to ensure the quality you need.

When it comes to tools, we know that versatility and dependability are what you need. As such, we stock a variety of mainstay and specialist tools to suit any application. Whether you're a professional electrician, plumber, builder or DIY enthusiast, RS PRO is here to support you.


AtributoValor
Tipo de herramienta de desoldaduraExtractor de soldaduras
Longitud Global154 mm
