- Código RS:
- 229-1619
- Nº ref. fabric.:
- 1590Z164
- Fabricante:
- Hammond
1 Disponible para entrega en 24/48 horas
Añadido
Precio Unidad
106,98 €
(exc. IVA)
129,45 €
(inc.IVA)
Unidades | Por unidad |
1 - 4 | 106,98 € |
5 - 9 | 101,63 € |
10 - 19 | 96,27 € |
20 - 49 | 90,93 € |
50 + | 85,58 € |
- Código RS:
- 229-1619
- Nº ref. fabric.:
- 1590Z164
- Fabricante:
- Hammond
Documentación Técnica
Legislación y Conformidad
- COO (País de Origen):
- GB
Datos del Producto

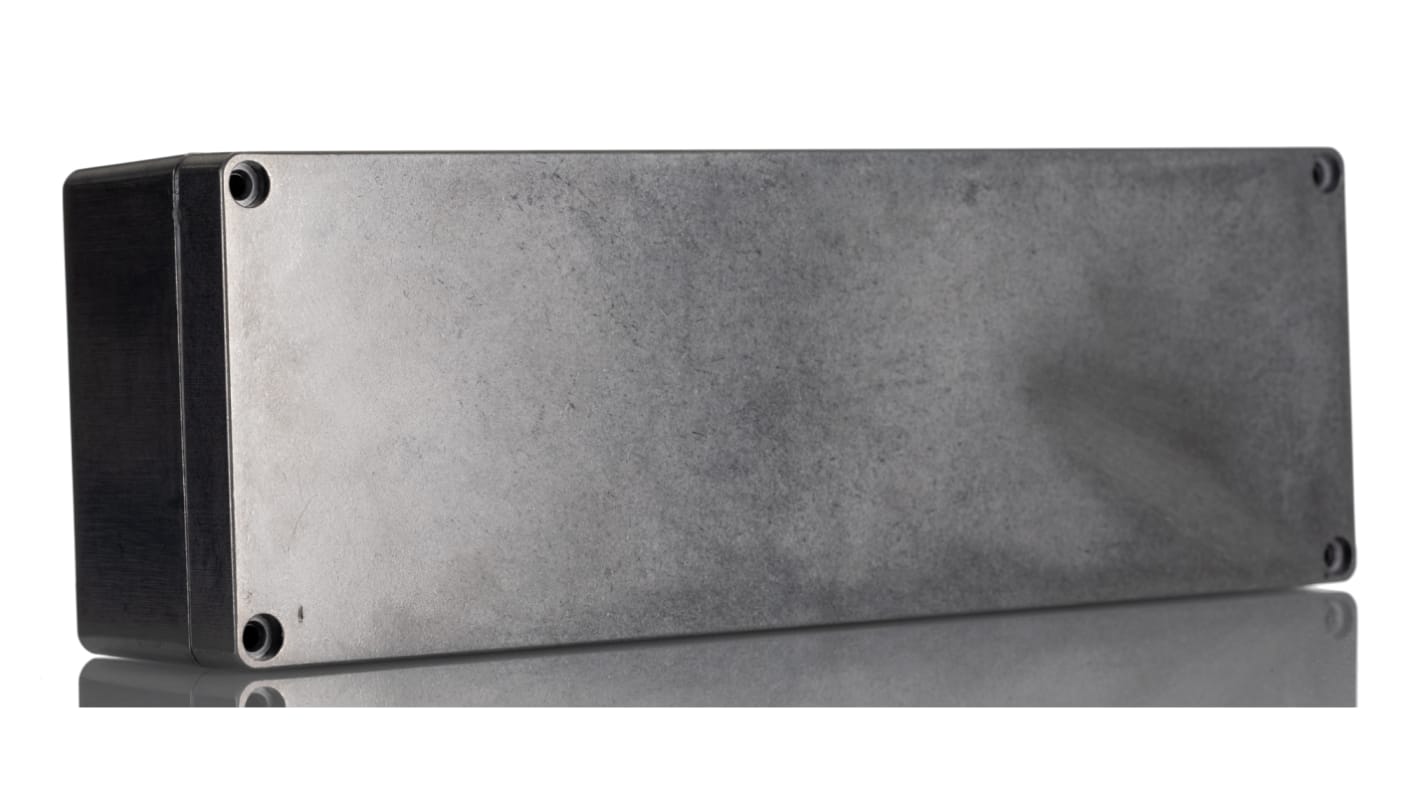

Hammond 1590Z Series Enclosure, Die Cast Aluminium Alloy Body, IP68 Rating - 1590Z164
This Hammond enclosure is a rugged diecast aluminium alloy electronic instrument enclosure offering watertight protection. With a thick wall construction and replaceable silicone rubber gasket, this enclosure is ideal for repetitive opening and closing. Designed to meet IP68 ratings, it is the reliable solution for a wide range of applications.
Features & Benefits
• Rugged diecast aluminium alloy construction for durability
• Watertight enclosure with silicone rubber gasket for protection against dust and water
• Easy to machine and wall mount for convenience
• Provides impact resistance with a temperature rating of -40C to +150C
• Certified to Type 4, 4X, 6, 6P with cUL & UL listing for safety
• Watertight enclosure with silicone rubber gasket for protection against dust and water
• Easy to machine and wall mount for convenience
• Provides impact resistance with a temperature rating of -40C to +150C
• Certified to Type 4, 4X, 6, 6P with cUL & UL listing for safety
Applications
• Ideal for electronic instruments in automation, electronics, and electrical industries
• Suitable for applications requiring protection against dust and water ingress
• Can be used for outdoor installations where weatherproof enclosures are necessary
• Suitable for applications requiring protection against dust and water ingress
• Can be used for outdoor installations where weatherproof enclosures are necessary
La caja de aluminio presofundido Hammond tipo 4X/6P es estanca, homologada UL y tiene paredes gruesas. Se trata de una construcción de ranura y lengüeta de dos piezas con una junta de caucho de silicona reemplazable de una pieza que proporciona protección contra el acceso de polvo y agua. Junta suministrada suelta dentro de la caja (no preinstalada). Cuatro tornillos mecánicos rebajados de acero inoxidable fijan la tapa en orificios roscados. Es fácil de montar en pared usando una construcción de orificio ciego de caja pasante, fuera de la protección de la junta. Es de color natural y tiene unas dimensiones de 361 x 120 x 80 mm.
Can it withstand extreme temperatures?
Tiene un nivel de protección IP68
Su junta tiene una temperatura nominal de 40 °C a +150°C.
Ideal para apertura y cierre repetitivos
Su junta tiene una temperatura nominal de 40 °C a +150°C.
Ideal para apertura y cierre repetitivos
This enclosure has a temperature rating of -40C to +150C, making it suitable for a variety of environments.
Is it suitable for outdoor use?
Yes, it is designed to meet IP68 ratings, ensuring protection against dust and water ingress.
Will it provide impact resistance?
The enclosure offers impact resistance with an impact rating of IK08 per IEC62262.
What mounting options does it offer?
The enclosure features recessed stainless steel machine screws for securing the lid in place, as well as through hole blind mounting for wall mounting.
Does it come with inner panels?
16ga galvanised steel inner panels are available for most sizes of the enclosure, sold separately for added customisation.
Especificaciones
Atributo | Valor |
---|---|
Material del Cuerpo | Aleación de Aluminio Presofundido |
Longitud Externa | 361 mm |
Altura Externa | 80 mm |
Anchura Externa | 120 mm |
Dimensiones Externas | 361 x 120 x 80mm |
Calibre | 1590Z |
Índice de Protección IP | IP68 |
Color | Transparente |
Con Reborde | No |
Series | 1590Z |
Calificación IK | IK08 |
Peso | 1.9kg |
Material de juntas | Silicona |
