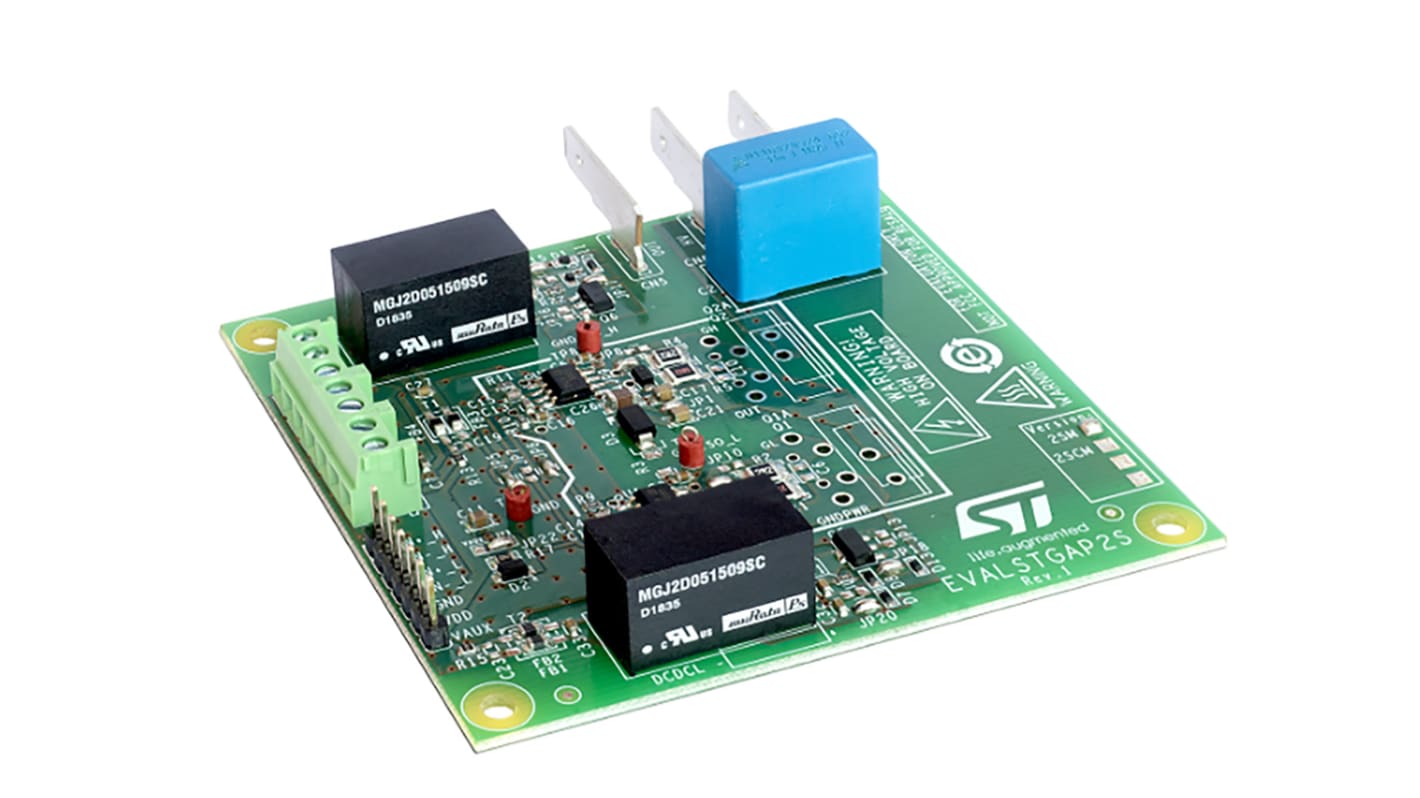

Placa de desarrollo STMicroelectronics Demonstration Board for STGAP2SCM Isolated 4 A Single Gate Driver - EVALSTGAP2SCM

High voltage rail up to 1700 V
Driver current capability:
4 A source/sink at 25 °C
Separate sink and source for simplified gate driving configuration
4 A Miller clamp
Short propagation delay: 100 ns
UVLO function
Gate driving voltage up to 26 V
Negative gate driving
On-board isolated DC-DC converters to supply gate drivers, fed by VAUX = 5 V
VDD logic supply local 3.3 V or VAUX
3.3 V, 5 V TTL/CMOS inputs with hysteresis
Easy jumper selection of driving voltage configuration:
+15/0 V, +15/-3 V, +19/0 V, +19/-3 V
Temperature shutdown protection
