- Código RS:
- 181-2479
- Nº ref. fabric.:
- LAMBDA62-8D
- Fabricante:
- RF Solutions
15 Disponible para entrega en 24/48 horas
Precio Unidad
15,87 €
(exc. IVA)
19,20 €
(inc.IVA)
Unidades | Por unidad |
---|---|
1 - 4 | 15,87 € |
5 - 9 | 15,23 € |
10 - 24 | 14,45 € |
25 - 49 | 13,50 € |
50 + | 12,54 € |
- Código RS:
- 181-2479
- Nº ref. fabric.:
- LAMBDA62-8D
- Fabricante:
- RF Solutions
Documentación Técnica
Legislación y Conformidad
- COO (País de Origen):
- GB
Datos del Producto

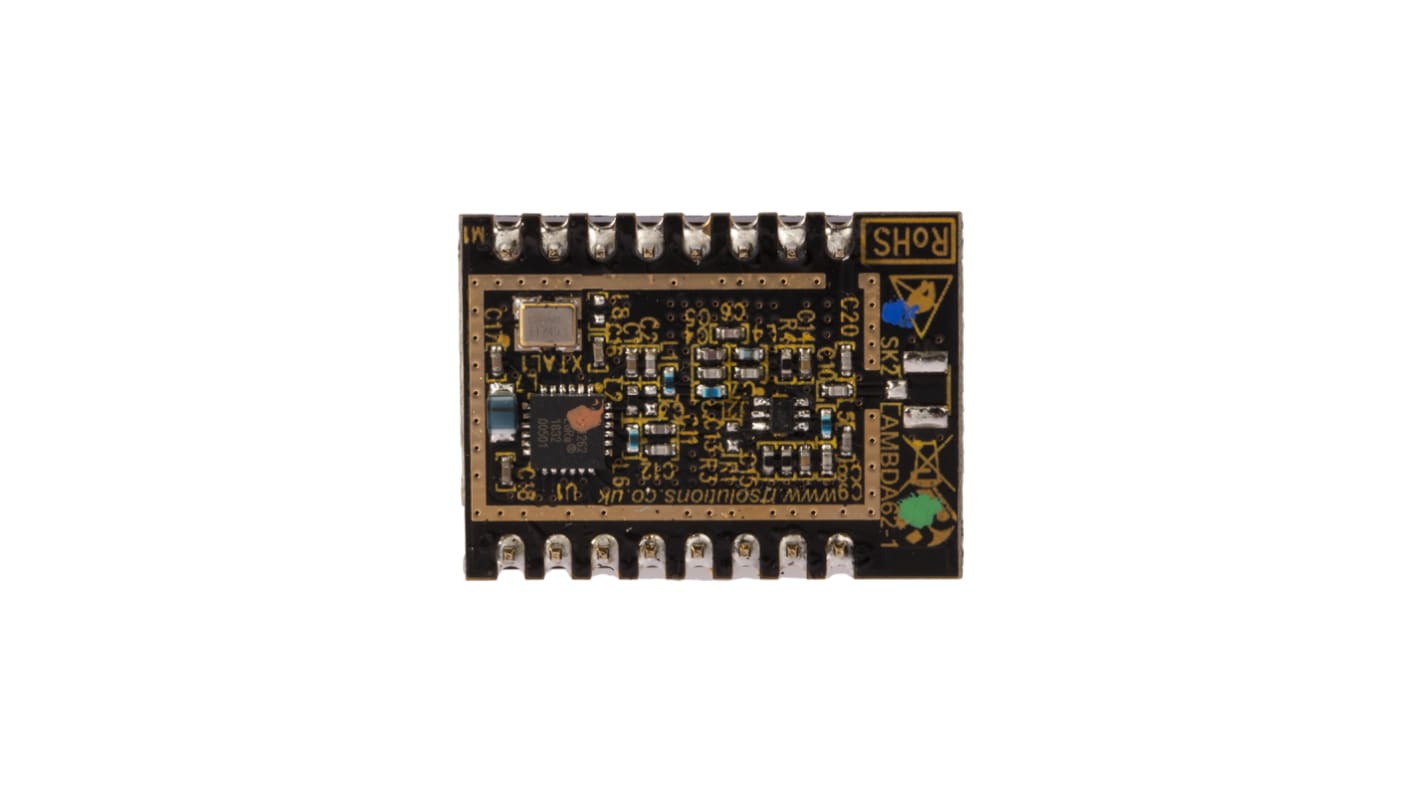

RF Solution Module
The RF Solutions LAMBDA62-8D series DIP package transceiver module is operated at 868MHz frequency. It has an electrical rating between 1.6V and 3.3V. This module is a leading, cost-efficient radio module featuring ultra-long range, spread spectrum communication and high interference immunity within minimal current consumption.
Features and Benefits
• 127dB dynamic range RSSI
• 14dBm high efficiency PA
• 170dB maximum link budget
• 89dB blocking immunity
• Automatic RF sense and CAD with ultra-fast AFC
• Built-in bit synchronizer for clock recovery
• Built-in RF switch
• Built-in temperature sensor and low battery indicator
• Bullet-proof front end -12.5dBm
• High receiving sensitivity down to -148dBm
• Highly efficient integral impedance matching network
• Integrated LoRa modem semtech SX1262
• LoRa, FSK, GFSK, MSK, GMSK, OOK modulation
• Low RX current of 4.6 mA (Lora Operating Mode)
• Packet engine up to 256bytes with CRC
• Preamble detection
• Programmable bit rate up to 300kbps
• Provides full functionality of the RFIC
• Small form factor 23mm x 20mm
• Transmission of 22dBm at 118mA constant RF output
• Upto 20km range
• 14dBm high efficiency PA
• 170dB maximum link budget
• 89dB blocking immunity
• Automatic RF sense and CAD with ultra-fast AFC
• Built-in bit synchronizer for clock recovery
• Built-in RF switch
• Built-in temperature sensor and low battery indicator
• Bullet-proof front end -12.5dBm
• High receiving sensitivity down to -148dBm
• Highly efficient integral impedance matching network
• Integrated LoRa modem semtech SX1262
• LoRa, FSK, GFSK, MSK, GMSK, OOK modulation
• Low RX current of 4.6 mA (Lora Operating Mode)
• Packet engine up to 256bytes with CRC
• Preamble detection
• Programmable bit rate up to 300kbps
• Provides full functionality of the RFIC
• Small form factor 23mm x 20mm
• Transmission of 22dBm at 118mA constant RF output
• Upto 20km range
Certifications
• IIP3 rating
Especificaciones
Atributo | Valor |
---|---|
Sensibilidad del receptor | -148dBm |
Tipo de protocolo | LoRa |
Interfaces de bus admitidas | SPI |
Tensión de Alimentación | 1.6 → 3.3V |
Dimensiones | 26.95 x 19.95 x 1mm |
