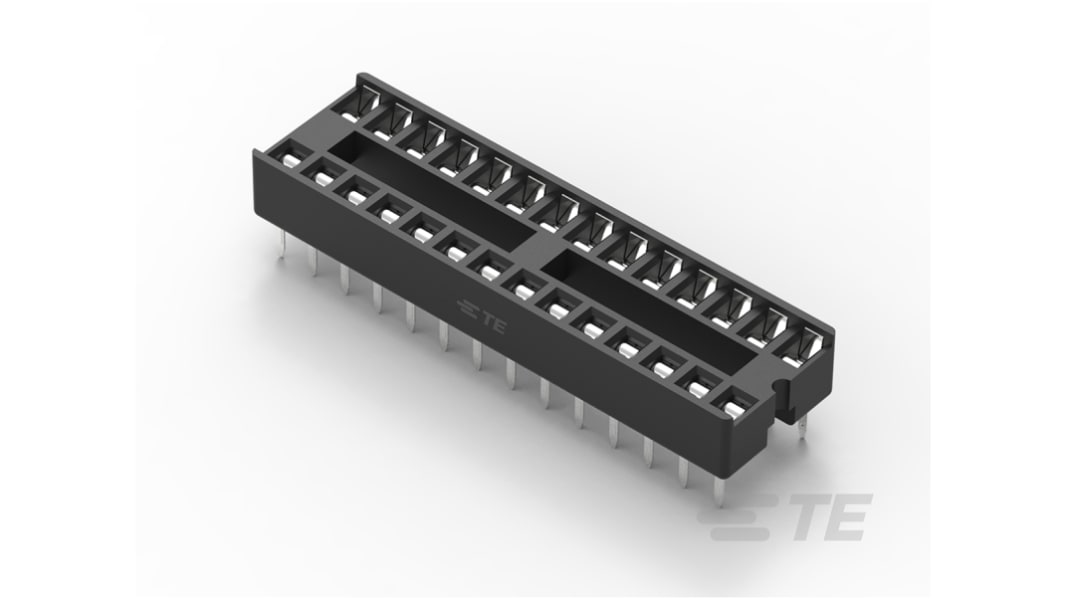

Zócalo DIL TE Connectivity, paso de 2.54mm, , 28 contactos, anch. 7.62mm, 1A, Montaje en orificio pasante
- Código RS:
- 186-4815
- Nº ref. fabric.:
- 1-2199298-9
- Fabricante:
- TE Connectivity
Temporalmente fuera de stock. Disponible a partir del 23/07/2024, con entrega en 4 día(s) laborable(s).
Añadido
Precio unitario (En un Tubo de 1700)
0,484 €
(exc. IVA)
0,586 €
(inc.IVA)
Unidades | Por unidad | Por Tubo* |
1700 + | 0,484 € | 822,80 € |
*precio indicativo |
- Código RS:
- 186-4815
- Nº ref. fabric.:
- 1-2199298-9
- Fabricante:
- TE Connectivity
Documentación Técnica
Legislación y Conformidad
- COO (País de Origen):
- CN
Datos del Producto
Our large selection of DIP sockets ranging from 6 to 48 contacts provides a highly reliable connection between your integrated circuit (IC) devices and PCBs. Termination options include through hole and surface mounting, four-finger and dual leaf contacts, as well as a variety of plating options.
6 to 48 positions
Precision four-finger inner contacts or dual leaf contacts are optional
Open frame and closed frame housings
End-to-end and side-to-side stackable
Available with a variety of plating options
Quick IC mating/unmating
Easy field IC replacement
Avoidance of IC overheating during soldering
Flexibility of system upgrade
Large portfolio offers product closest to your need
Applications
Industrial controls
Intelligent buildings
Medical devices
Military
Other embedded systems
Precision four-finger inner contacts or dual leaf contacts are optional
Open frame and closed frame housings
End-to-end and side-to-side stackable
Available with a variety of plating options
Quick IC mating/unmating
Easy field IC replacement
Avoidance of IC overheating during soldering
Flexibility of system upgrade
Large portfolio offers product closest to your need
Applications
Industrial controls
Intelligent buildings
Medical devices
Military
Other embedded systems
Especificaciones
Atributo | Valor |
---|---|
Número de Contactos | 28 |
Tipo de Montaje | Montaje en orificio pasante |
Paso | 2.54mm |
Anchura de Fila | 7.62mm |
Tipo de bastidor | Escalera |
Método de Terminación | Soldador |
Revestimiento del Contacto | Estaño |
Valor Nominal de Corriente | 1A |
Orientación | Recto |
Longitud | 35.56mm |
Anchura | 10mm |
Profundidad | 5.1mm |
Dimensiones | 35.56 x 10 x 5.1mm |
Tensión Nominal | 250 V ac/dc |
Material de la Carcasa | PBT reforzado con fibra de vidrio, termoplástico |
Material del Contacto | Bronce Fosforado |
Temperatura Mínima de Funcionamiento | -40°C |
Temperatura Máxima de Funcionamiento | +105°C |
