Conector RJ45 Cat5e Hembra RS PRO serie GTC Sealed, Montaje en Panel, apantallamiento Blindado, Recta 1

Ver todo Conectores Ethernet
Descuento aplicable por cantidad

Subtotal (1 unidad)*

54,08 €

(exc. IVA)

65,44 €

(inc.IVA)

Add to Basket
Selecciona o escribe la cantidad
Disponible
  • Disponible(s) 5 unidad(es) más para enviar a partir del 02 de marzo de 2026
  • Disponible(s) 87 unidad(es) más para enviar a partir del 09 de marzo de 2026
  • Disponible(s) 100 unidad(es) más para enviar a partir del 10 de marzo de 2026
¿Necesitas comprar más? Introduce la nueva cantidad y clica en "Consultar fechas de entrega"
Unidad(es)
Por unidad
1 - 954,08 €
10 - 2448,63 €
25 - 4946,01 €
50 - 9943,36 €
100 +40,55 €

*precio indicativo

Código RS:
111-6745
Fabricante:
RS PRO
Encuentra productos similares seleccionando uno o varios atributos.
Seleccionar todo

Marca

RS PRO

Tipo de producto

Conector RJ45

Tipo de conector Ethernet

Conector RJ45

Categoría LAN

Cat5e

Número de puertos

1

Tipo de montaje

Montaje en Panel

Tipo de conector

Conector hembra

Género del conector

Hembra

Tipo de apantallamiento

Blindado

Orientación

Recta

Grado de protección IP

IP68

Tipo de Terminación

Roscado

Temperatura de Funcionamiento Mínima

-40°C

Temperatura de funcionamiento máxima

105°C

Certificaciones y estándares

No

Certificación de atmósferas explosivas

No

Longitud

29.1mm

Serie

GTC Sealed

Profundidad

42.7mm

Anchura

25.4 mm

Material de los contactos

Aleación de cobre

Contacto chapado

Dorado

COO (País de Origen):
TW

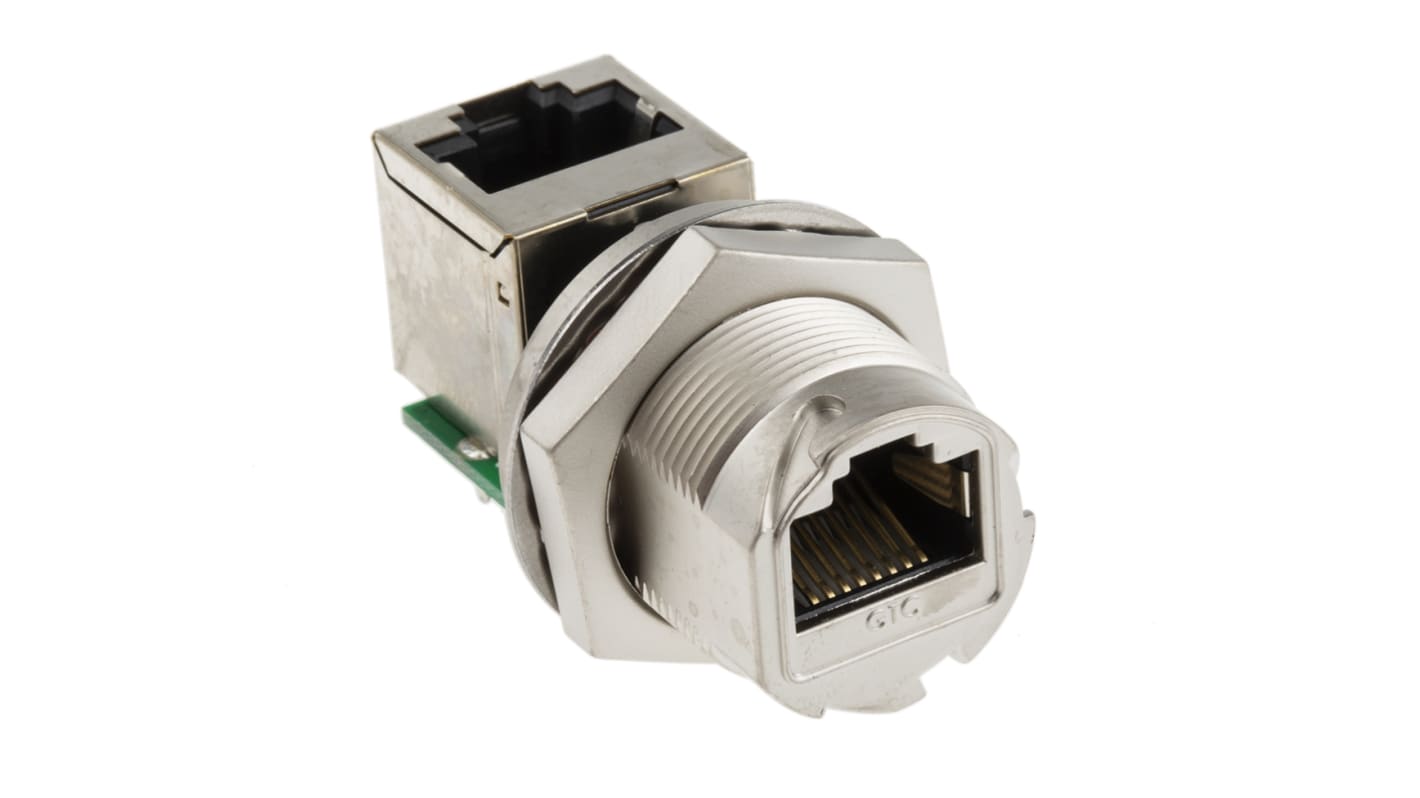

RS PRO Waterproof RJ45 Panel Mount Feed Through Jack


From RS PRO, this robust waterproof RJ45 panel mounting socket is ideal for applications in challenging environments. With a robust bulkhead and screw on jam nut, the RJ45 connector can fit most panels, and incorporates a silicone O-ring to create a sealed and durable feed-through connector point for networking applications.

The connector is also shielded, and so suitable for use in environments where EMI interference might be a concern. For Cat5e ethernet connections, this steel panel mount coupler connector is a high-quality solution.

Features and Benefits

• Socket to Socket feed-through Connector

• IP68 rated waterproof connector

• Rugged Construction

• 13/16-28 UN thread and have a recommended panel thickness range of 0.8 mm to 8.0 mm

• Easy to install onto predrilled panels and machine housing

• Wide operating temperature range -40°C / + 105°C

• 90° Coupling

Applications

RJ45 connectors and cables are typically used for internet connections, forming either local area (LAN) or wide area (WAN) networks. As it is protected from environmental ingress, it is suitable even for outdoor purposes, which means it has a wide range of uniquely challenging applications, such as;

• Wireless outdoor AP

• Outdoor LED and display lighting

• Marine

• Automotive

• Military

Environment

This RJ45 connector is rated IP68, which means it has maximum protection from dust and particle ingress, and waterproof even when completely immersed in water up to 1 meter, for a half hour period of time.

Why RS PRO?

RS PRO aims to be your go-to brand where dependability and affordability are a must. From must-have tools to component essentials, RS PRO employ vigorous in-house testing to assure maximum quality. Where you see the RS PRO brand, you know you're getting components you can trust.

When it comes to electronic connectors, RS PRO supplies a huge variety of solutions. Whether you're connecting industrial machinery in an automated factory or implementing IT solutions in a commercial office, RS PRO is with you every step of the way.
