Módulo RF Transceptor, 2,4GHz, 1.8 → 3.7V, Potencia 12.5dBm, Sensibilidad -132dBm

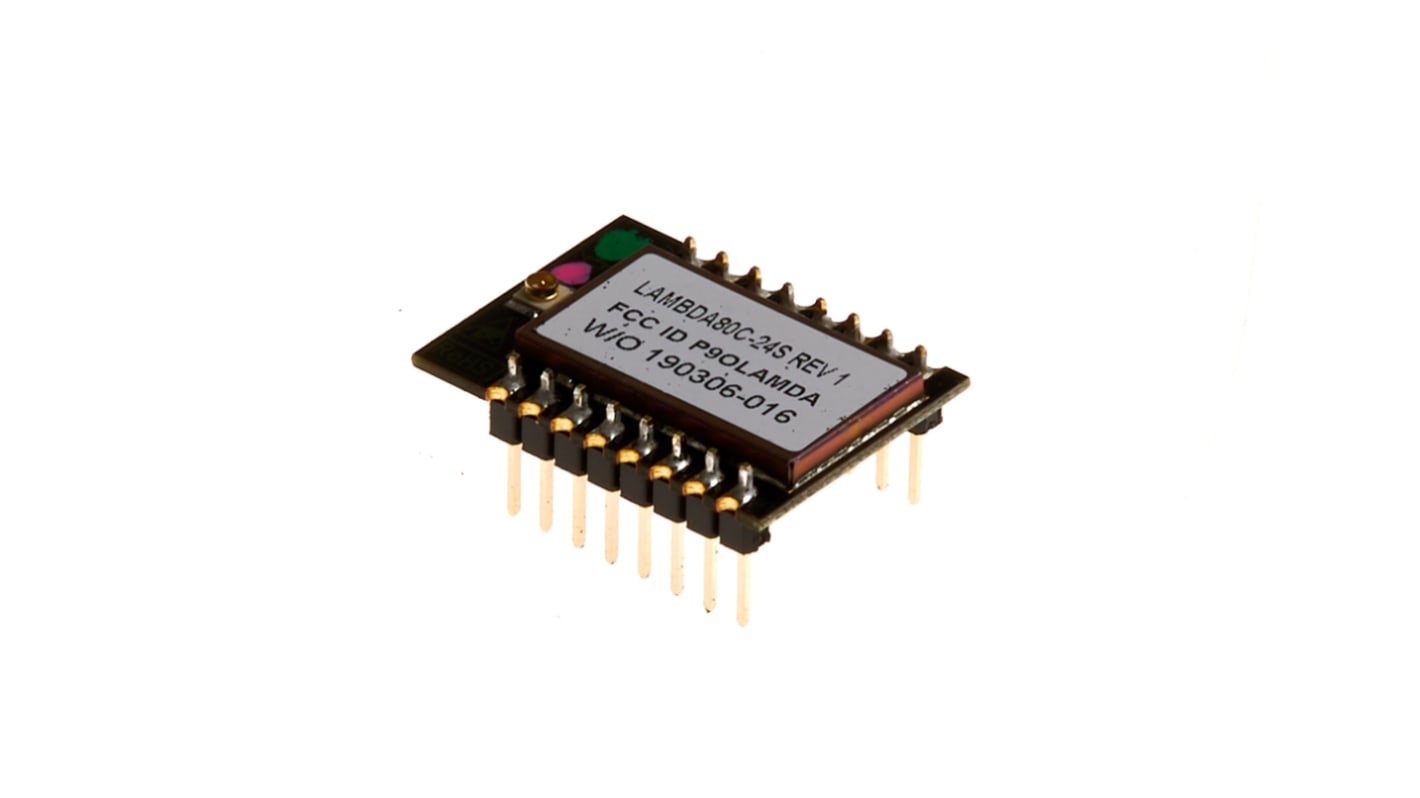

The RF Solutions LAMBDA80C-24D series DIP package transceiver module is operated at 2.4GHz frequency. It has an electrical rating between 1.8V and 3.7V. The LAMBDA80 RF module is an extremely high performance, cost-effective radio module featuring the Semtech SX1280 LoRa provides an ultra-long range, spread spectrum communication and high interference immunity within minimal current consumption.

• BLE PHY layer compatibility
• CE Compliant and modular FCC certification pending
• Excellent blocking immunity
• High sensitivity down to -132dBm
• Highly efficient integral impedance matching network
• Long range of 2.4GHz RF module
• LoRa upto 476bps
• LoRa, FLRC, (G) FSK supported modulations
• Low energy consumption, on-chip DC-DC
• Programmable bit rate
• Provides full functionality of the RFIC
• Ranging engine, time-of-flight function
• Receiver receive current as low as 4.8mA
• RF data rate-FSK upto 2.02Mbps
• Small form factor-23mm x 20mm
• Transmit power of 12.5dBm at 24mA
