Encuentra productos similares seleccionando uno o varios atributos.

Seleccionar todo	Atributo	Valor
	Marca	Metrix
	Calibrado	RSCAL
	Tipo de producto	Multímetro
	Tipo de multímetro	De Mano
	RMS Verdadero	Sí
	Calibrado	RSCAL
	Tipo de batería	AA, NiMH
	Altura	47.1 mm
	Longitud	196 mm
	Frecuencia máxima	5 MHZ
	Peso	570 g
	Anchura	90 mm

	Seleccionar todo
	Marca Metrix
	Calibrado RSCAL
	Tipo de producto Multímetro
	Tipo de multímetro De Mano
	RMS Verdadero Sí
	Calibrado RSCAL
	Tipo de batería AA, NiMH
	Altura 47.1 mm
	Longitud 196 mm
	Frecuencia máxima 5 MHZ
	Peso 570 g
	Anchura 90 mm

Estado RoHS: No aplica

COO (País de Origen):: FR

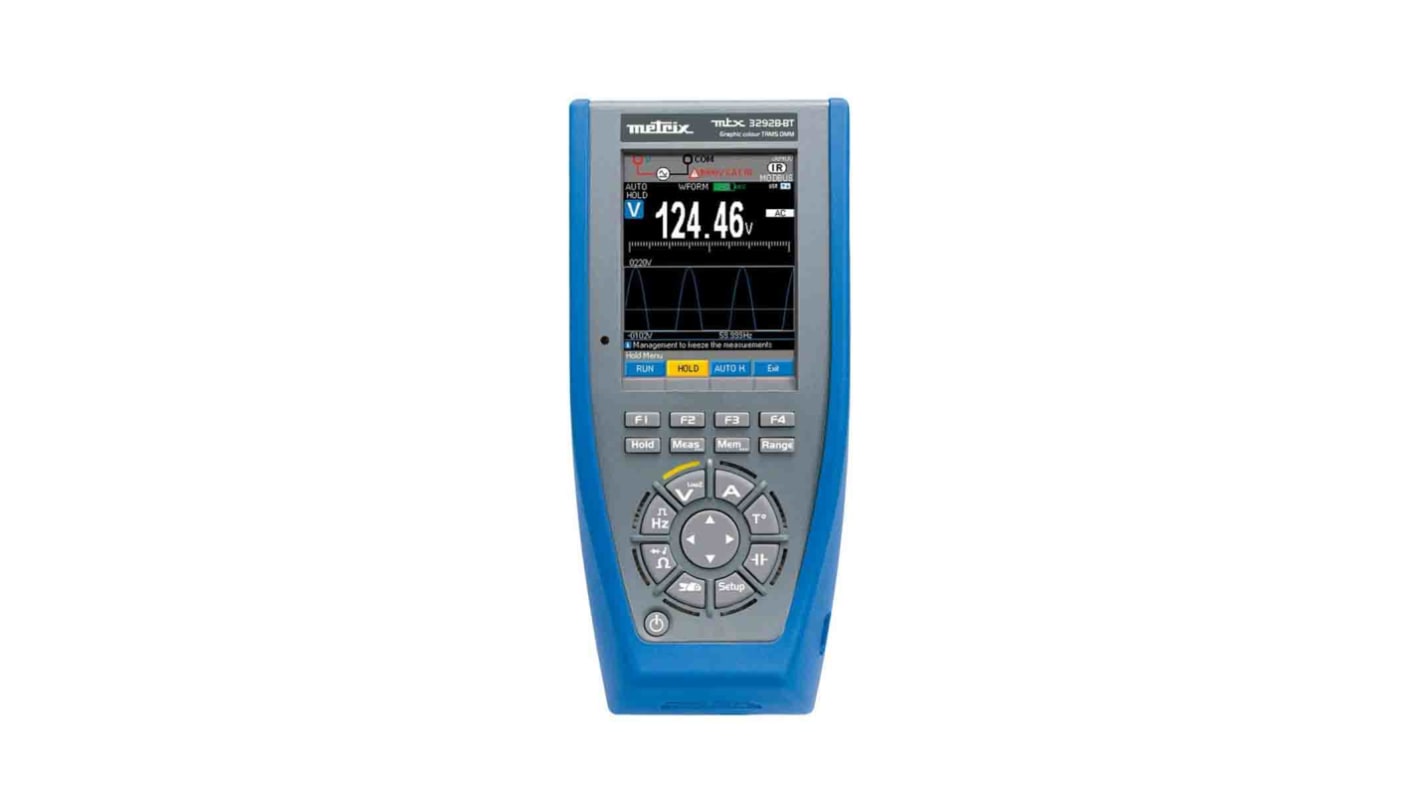

MTX3292 and MTX3292B Series (ASYC IV) Recorder-Multimeter

MTX3292 and MTX3292B digital display multimeters are used in total safety within both electronics and electrical engineering. The MTX3292 provides direct measurement of the main electrical quantities they are compact, rugged leak proof and comfortable to hold. An easy to use multimeter with the strength being the HMI, Advanced measurement functions and the measurement help provided. A large LCD display, digital keyboard and lighting all in an IP67 casing.

Features and Benefits:

Large backlit colour graphical LCD, 320 x 240 PTS (70 x 52 mm)

Graphical display, monitoring, storage, specifications on 4 measurement levels (1 main and 3 secondary) simultaneously

Digital switch with lighting of main function keys (8 positions)

Storage: 1000 measurements

DC, AC and AC+DC voltage

DC, AC and AC+DC current

Frequency

Resistance and continuity

Diode test

Temperature with Pt100 / 1000 and K / J TC

Protection: IP67

Communication: IR / USB

Added Benefits:

Graphical display of the trends for each measurement function;Multiple analytical tools;Trace, cursors and zoom on the recordings;Recording of 10 sequences;Surveillance of the MIN/MAX and AVG data with relative time/date stamping and of voltage and current peaks;Storage of up to 1000 measurements;Contextual reminder of the connections;Normal USB communication or Bluetooth available options;IP67 Protection against water projection and dust, excellent for outdoor environments

Power Supply:

4 x Ni-MH batteries;100 Hours operation time on batteries with battery management;Multimeter operates whilst charging

What Is Included?

Multimeter;4 x Ni-MH rechargeable batteries, 2400 mAH 1.5 V;Cable 1.5 m long, straight/straight red;Cable 1.5 m long, straight/straight black;Red CAT IV 1 kV test probe;Black CAT IV 1 kV test probe;USB Optical cable + SX-DMM software;User guide on CD and paper start-up guide

Standards

IEC 61010-1, Cat III 1000 V, Cat IV 600 V, EN61326-1

Multímetro De Mano Metrix Sí, calibrado RSCAL
